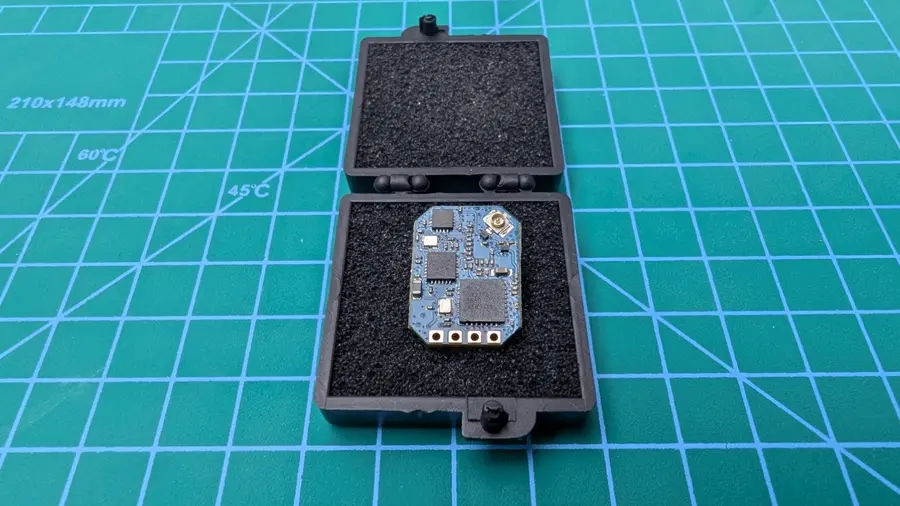

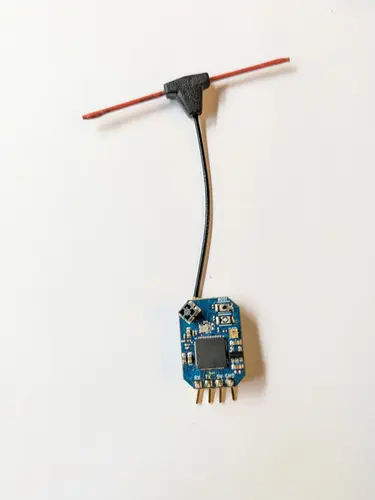

BYOMesh: Multiband LoRa Interface
The smallest-footprint multiband LoRa interface: access to every common LoRa band, plus the 2.4 GHz frontier. The premier dev board for open-source mesh, MeshTNC and rfparty.
Pre-order, ships once EU (CE/RED) certification is confirmed.
- Sold & invoiced in the EU by SourceParts.eu (VAT handled)
- EU shipping · returns & warranty via SourceParts
- Fulfilled & shipped by Dataparty
Specifications
Frequency range
137–1020 MHz + 2.4–2.5 GHz, every common LoRa band plus the 2.4 GHz frontier.
Chipset
ESP32-S3 · SX1276 (sub-GHz LoRa) · SX1281 (2.4 GHz LoRa) · AT2401C RF amplifier.
I/O & power

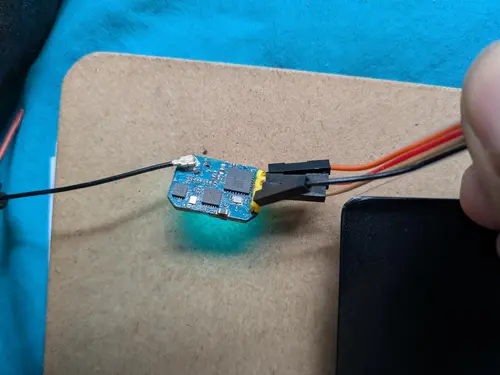

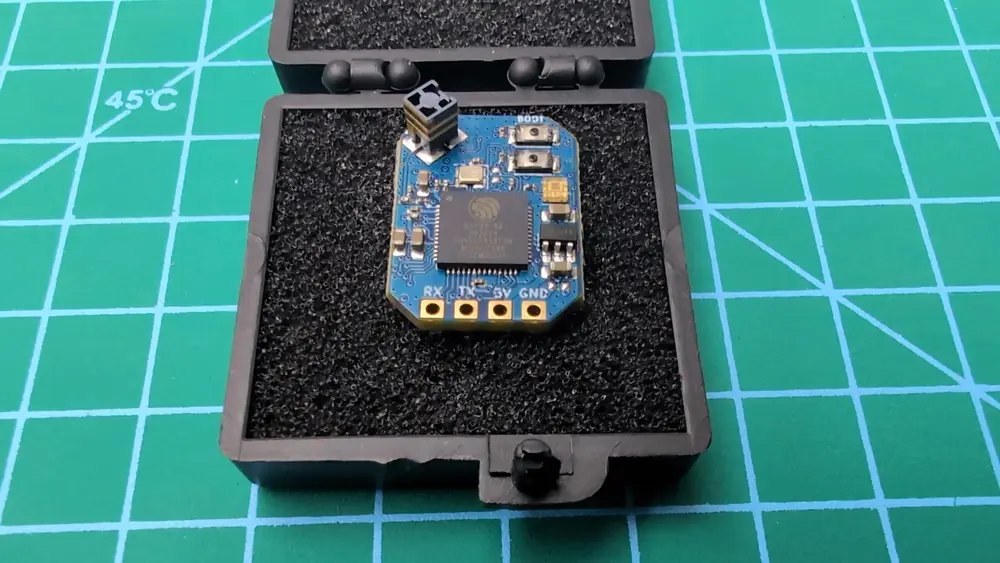

4-pin header (RX / TX / 5V / GND, included, not pre-soldered) · uFL antenna port · 5V power.
What it is
BYOMesh (Bring Your Own Mesh) is a multiband LoRa interface that gives every LoRa developer access to all common bands in the smallest possible footprint, the frequencies used by open-source, community-owned mesh networks, plus the 2.4 GHz band for new wireless frontiers.
Designed as the premier dev board for the open-source projects MeshTNC and rfparty, it runs far more than its maker's own software. No serial adapter is included; for first firmware flashing, pair it with a USB-to-serial adapter.
